Specification

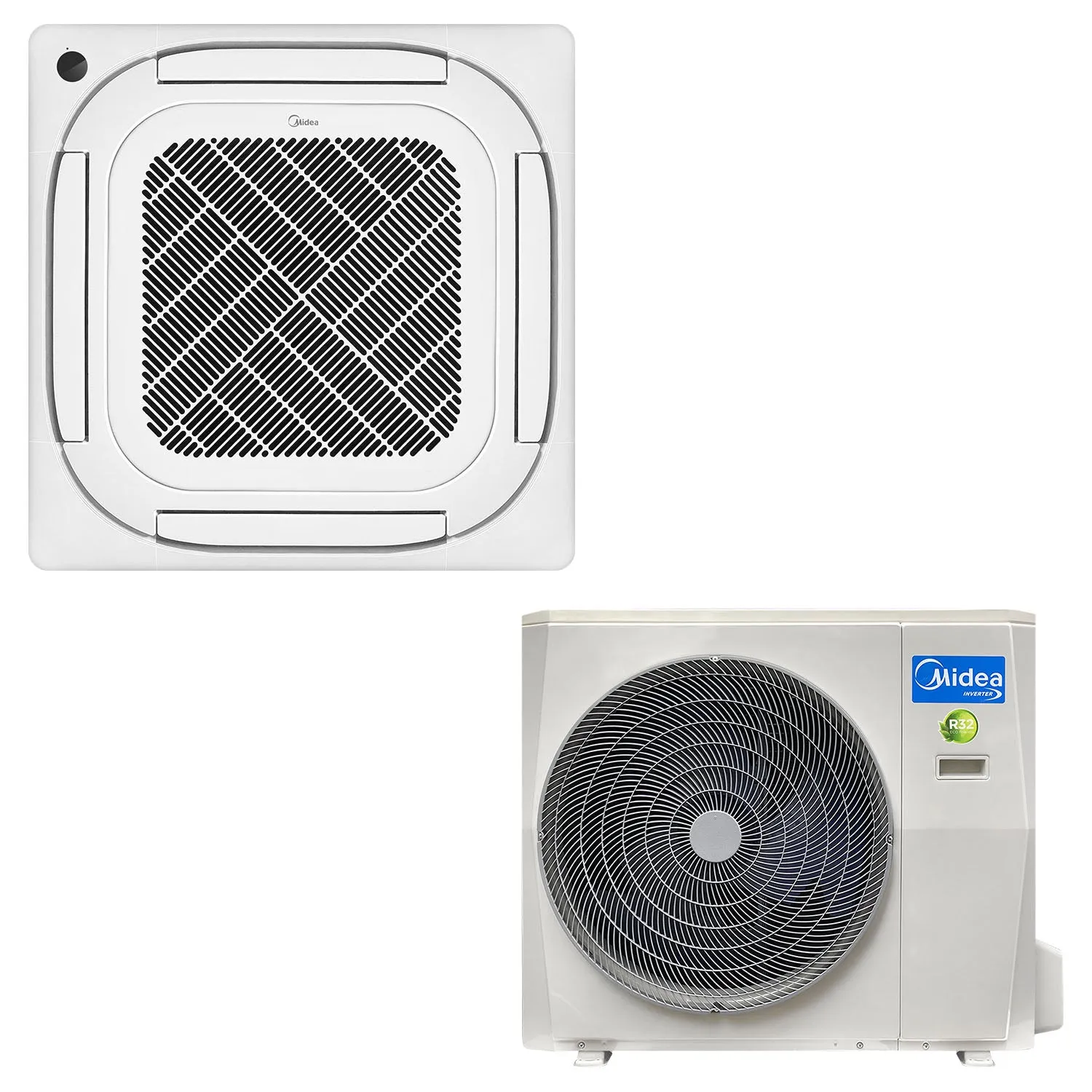

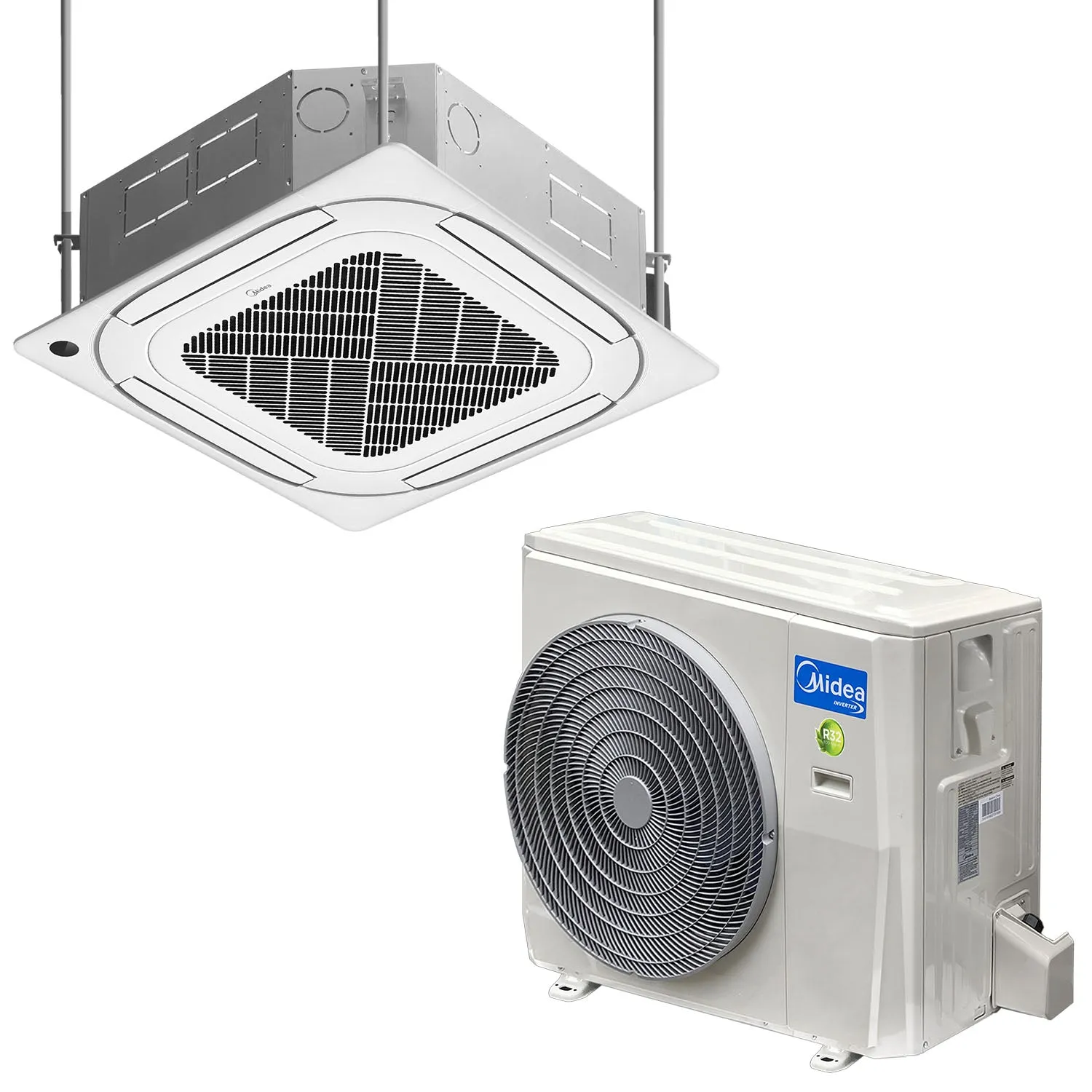

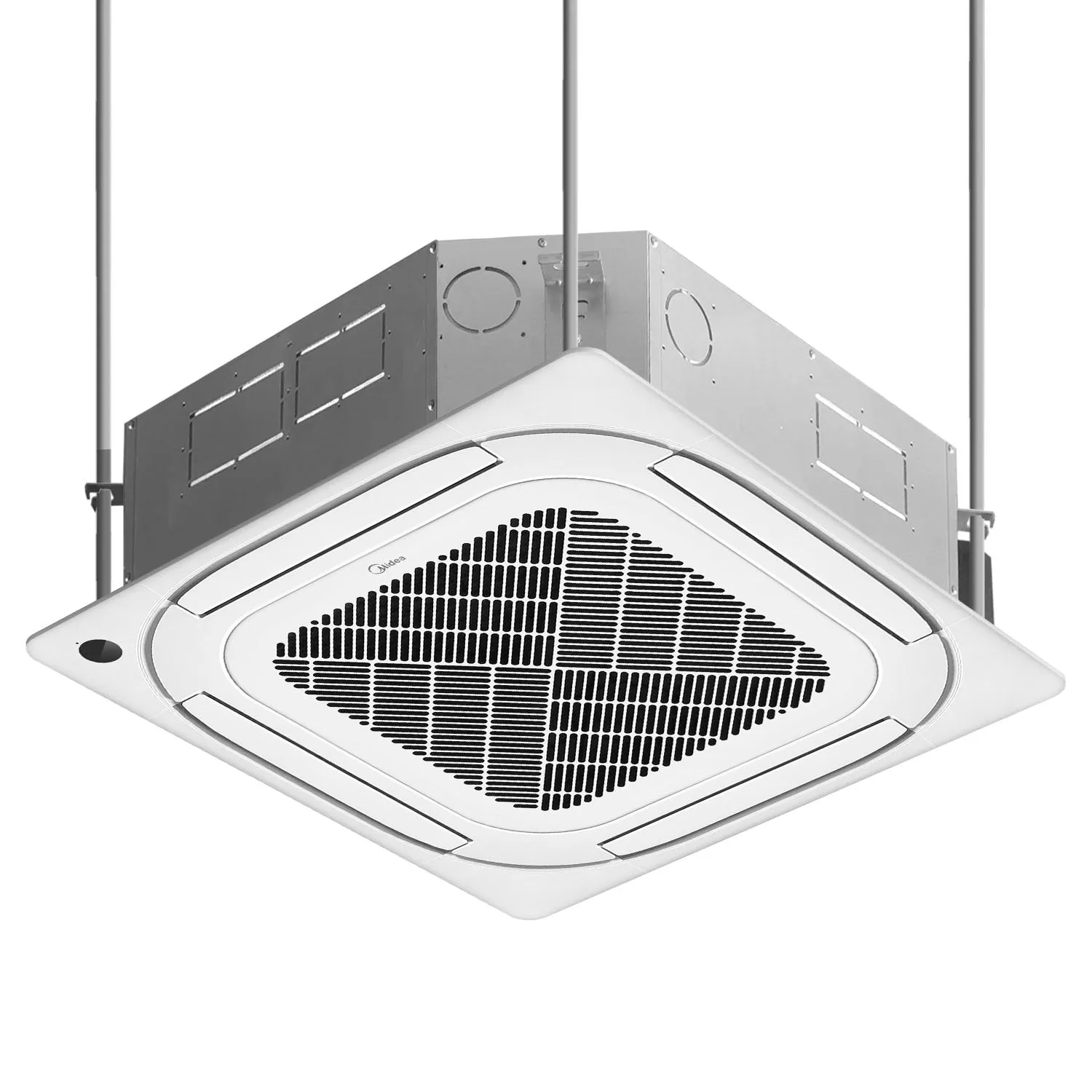

Midea – Inverter 4-Way Cassette (48000BTU) Inverter Four-Way Brand: Midea Model: MCD1-48CRDN8 Capacity: 48000BTU Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:Type: Cooling Only Control Type: Remote Power Supply (V, Ph, Hz): 380 - 415V, 3Ph, 50Hz Cooling: - Cooling Capacity (Btu/h): 48000Btu/h
- Input (W): 5800W
- Rated Current (A): 8.3 A
- EER (W/W): 2.43
Rated Power Input: 7050W Rated Current: 13A Indoor Fan Motor Speed (High/Middle/Low): 760/690/610 r/min Indoor Coil: - Number of rows: 3
- Tube pitch (a) x row pitch (b): 21 x 13.37mm
- Fin spacing: 1.3mm
- Fin type (code): Golden Hydrophilic aluminum
- Tube outside dia. and type: Φ7, Inner groove tube
- Coil (length x height x width): 980 x 252 x 40.11mm 980 x 252 x 40.11mm
- Number of circuits: 10
Indoor air flow (High/Middle/Low): 2000/1800/1600 m3/h Indoor noise level (High/Middle/Low): 55/53/50 dB (A) Drainage water pipe dia: OD Ø25mm Room Temperature Indoor (Cooling): 16 ~ 32 °C

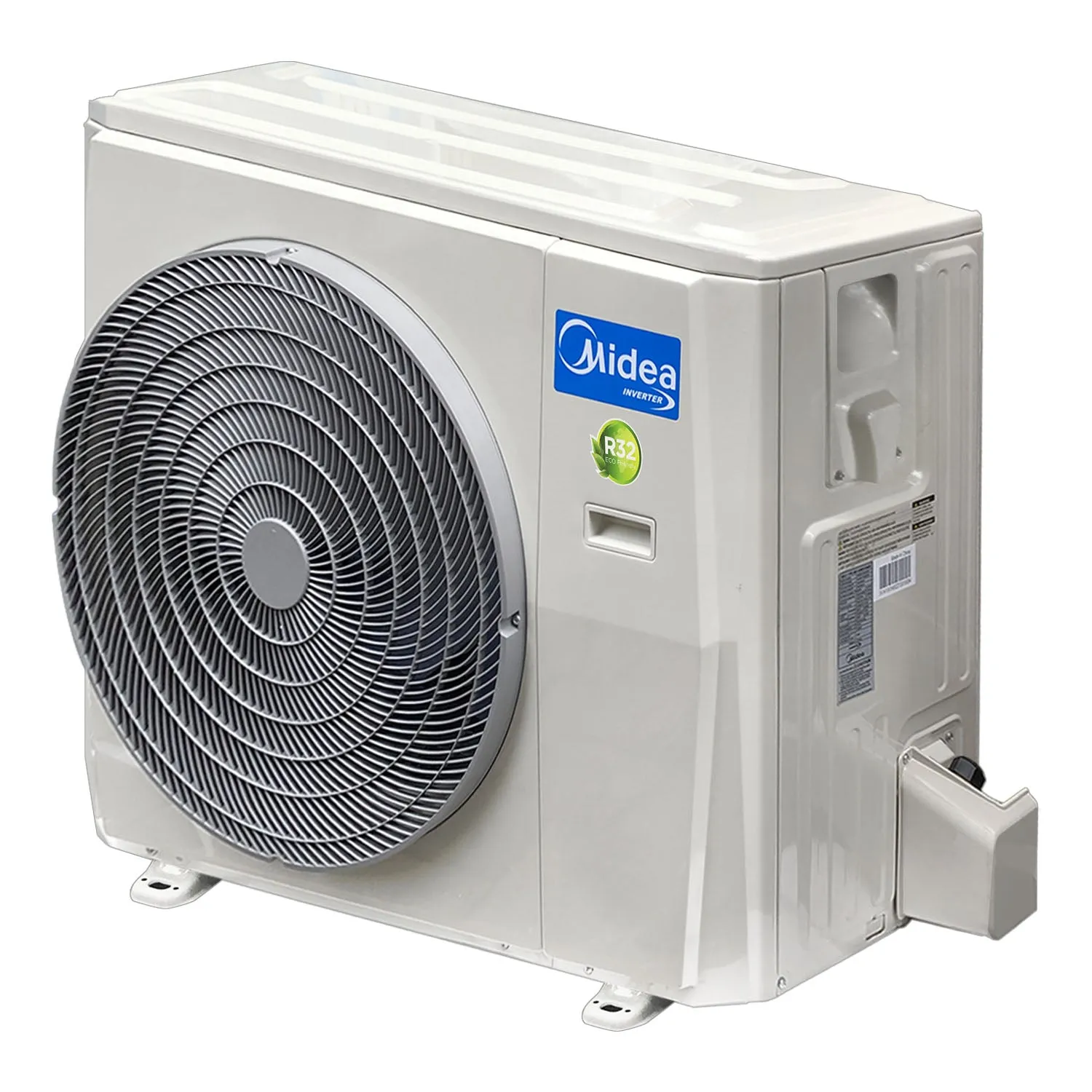

Outdoor Unit:Power Supply (V, Ph, Hz): 380 - 415V, 3Ph, 50Hz Compressor: - Type: Rotary
- Capacity (W): 10010W
- Input (W): 2765W
- Rated current (RLA) (A): 5.38A
Output Power x Fan quantity: 150W x1 Outdoor Fan Motor Speed: 1050/900/850 r/min Outdoor Coil: - Number of rows: 2
- Tube pitch (a) x row pitch (b): 21 x 13.37 mm
- Fin spacing: 1.4mm
- Fin type (code): Golden Hydrophilic aluminum
- Tube outside dia. and type: Φ7, Inner groove tube
- Coil (length x height x width): 9100 x 756 x 26.74mm
- Number of circuits: 6
Outdoor noise level: 62 dB (A) Refrigerant Type: R32/1.95 kg Design Pressure: 4.3/1.7 MPa Refrigerant Piping: - Liquid Side / Gas Side: 9.52mm(3/8in)/15.9mm(5/8in)
- Max. Refrigerant Pipe Length: 50m
- Max. Difference in Level: 30m
Operation Temperature: 17 ~ 30 °C Room Temperature Outdoor (Cooling): 0 ~ 50 °C

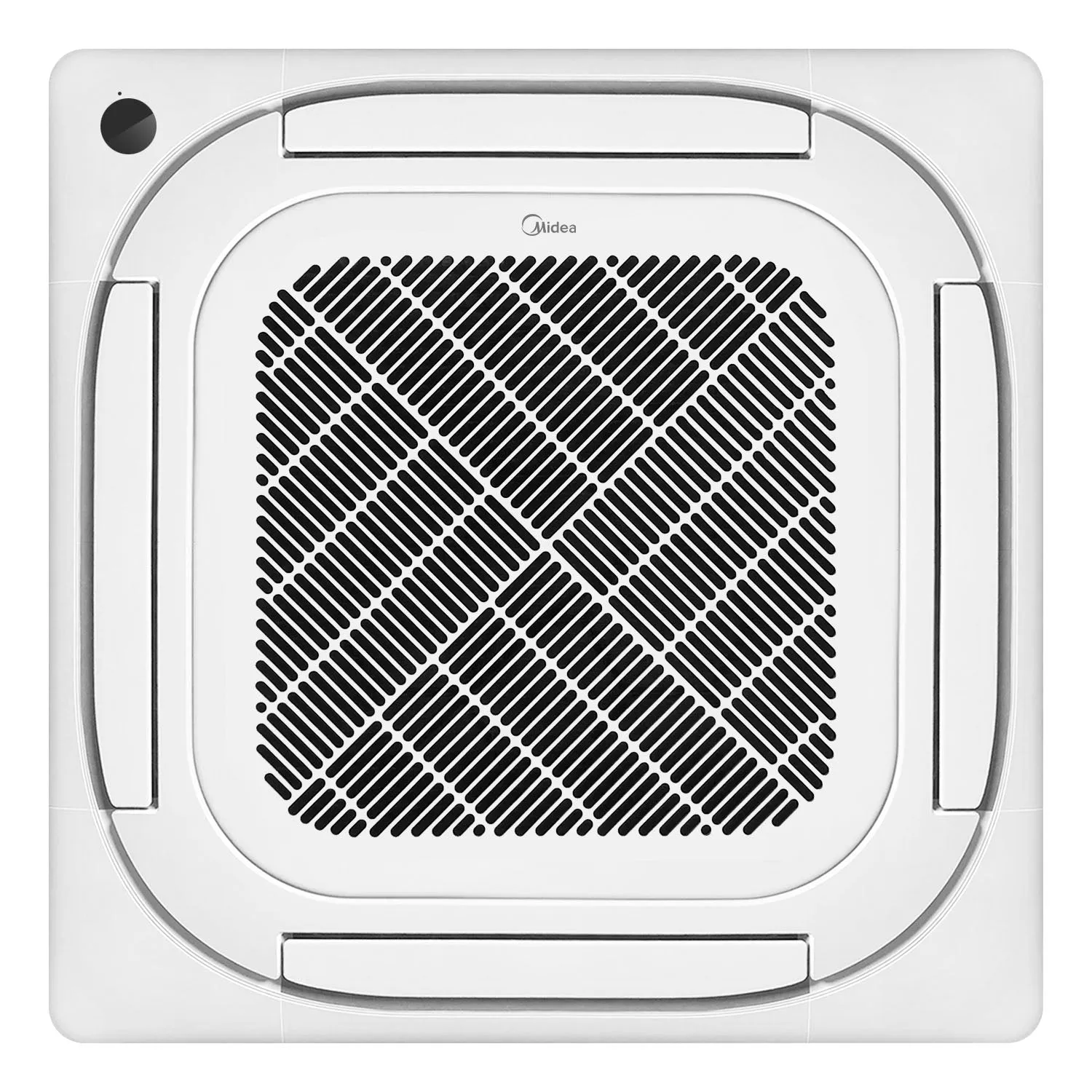

Dimension & Weight:Weight x Depth x Height Panel: - Product Dimension: 950 x 950 x 55mm
- Packing Dimension: 1035 x 1035 x 90mm
- Net Weight: 6kg
- Gross Weight: 9kg
Indoor Unit: - Product Dimension: 830 x 830 x 287mm
- Packing Dimension: 910 x 910 x 330mm
- Net Weight: 30kg
- Gross Weight: 35kg

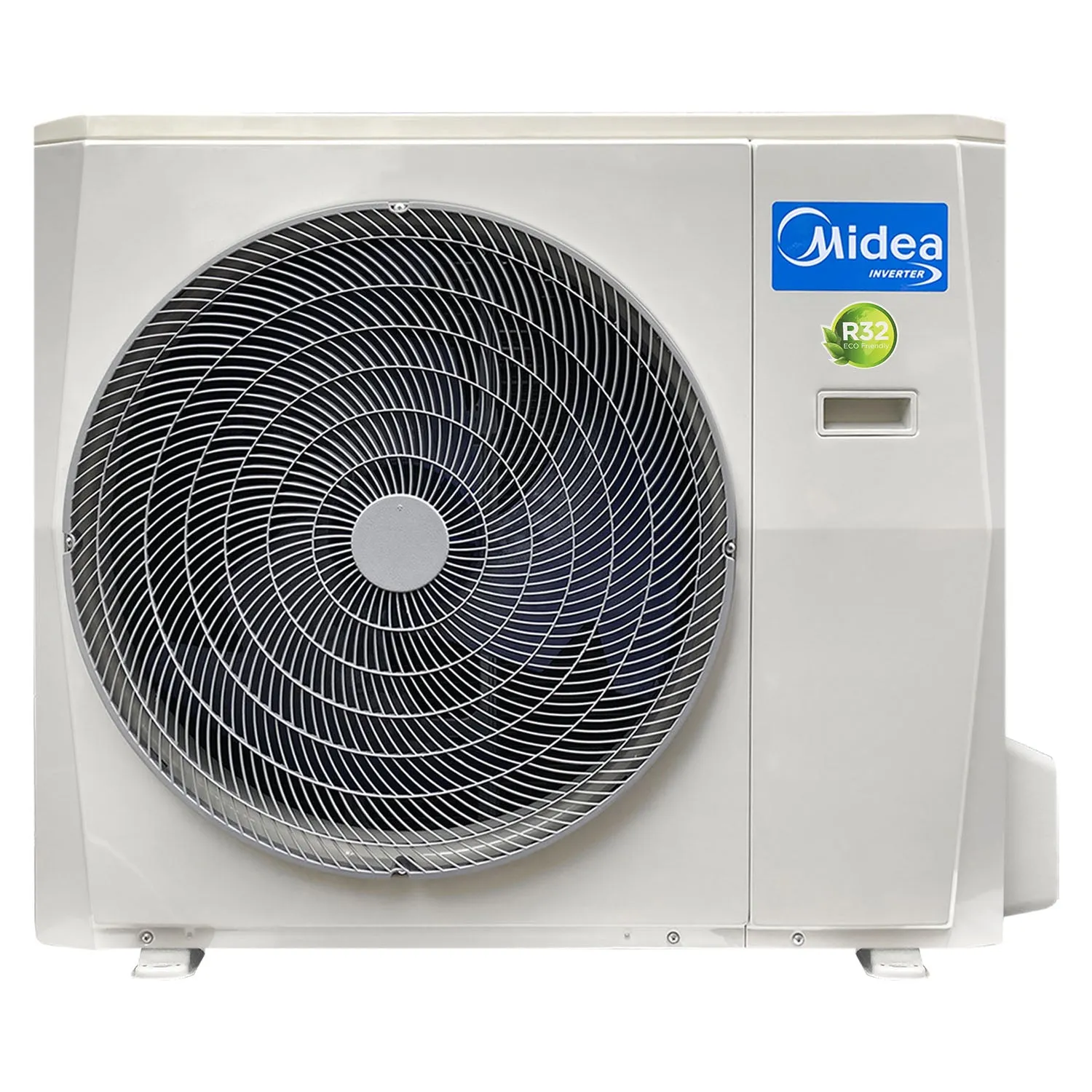

Outdoor Unit: - Product Dimension: 946 x 410 x 810mm
- Packing Dimension: 1090 x 500 x 885mm
- Net Weight: 65.5kg
- Gross Weight: 70.5kg

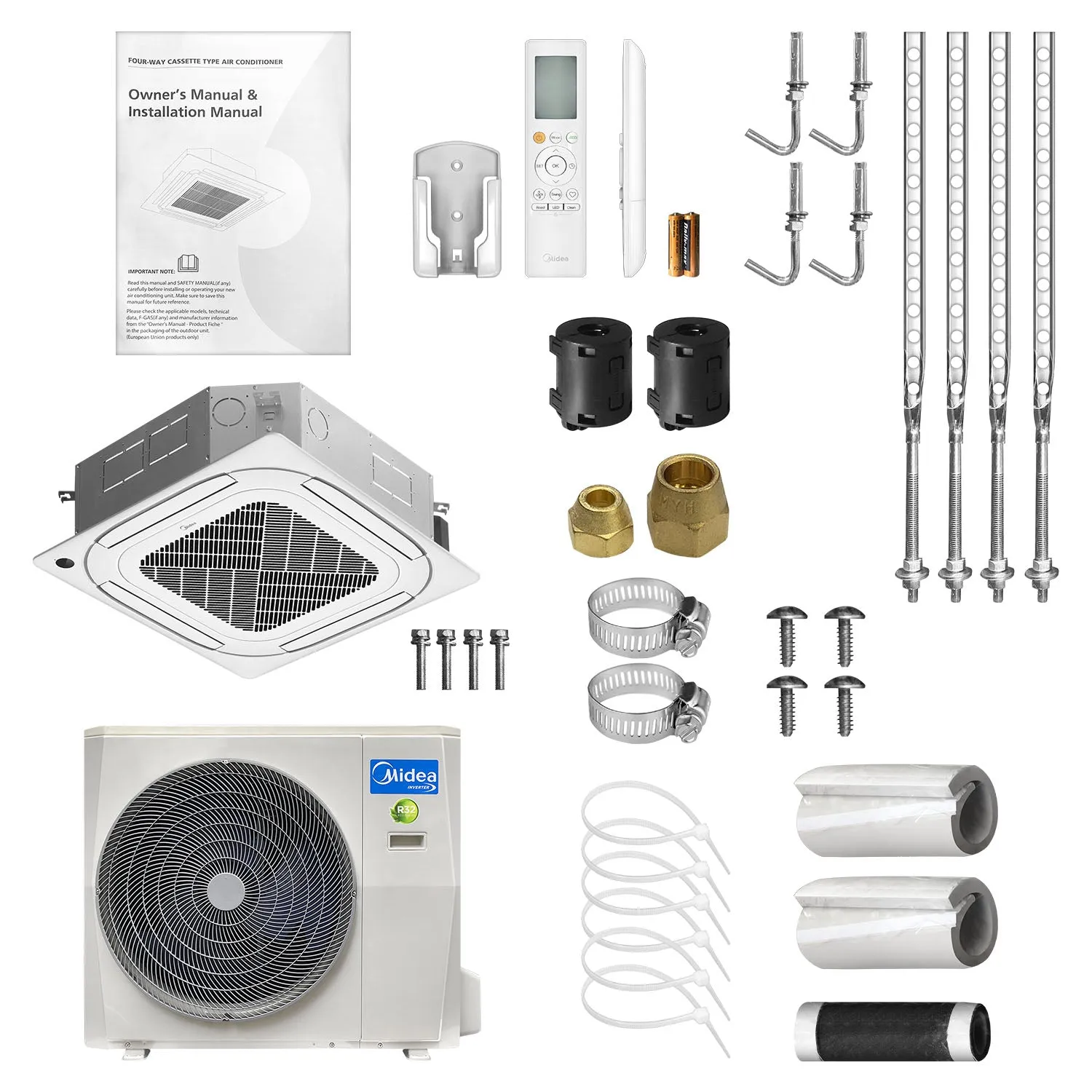

Packing Contents:
48k BTU 4-Way Panel – x1 48k BTU Indoor Unit – x1 - Suspension Bolt – x4
- Ceiling Hook – x4
- Hose Clamp – x2
- Screws – x4
- Cable Tie – x6
- Insulation Sheath – x2
- Outlet pipe sheath – x1
- Copper Nut – x2
- Magnetic Ring Cable Filter – x2

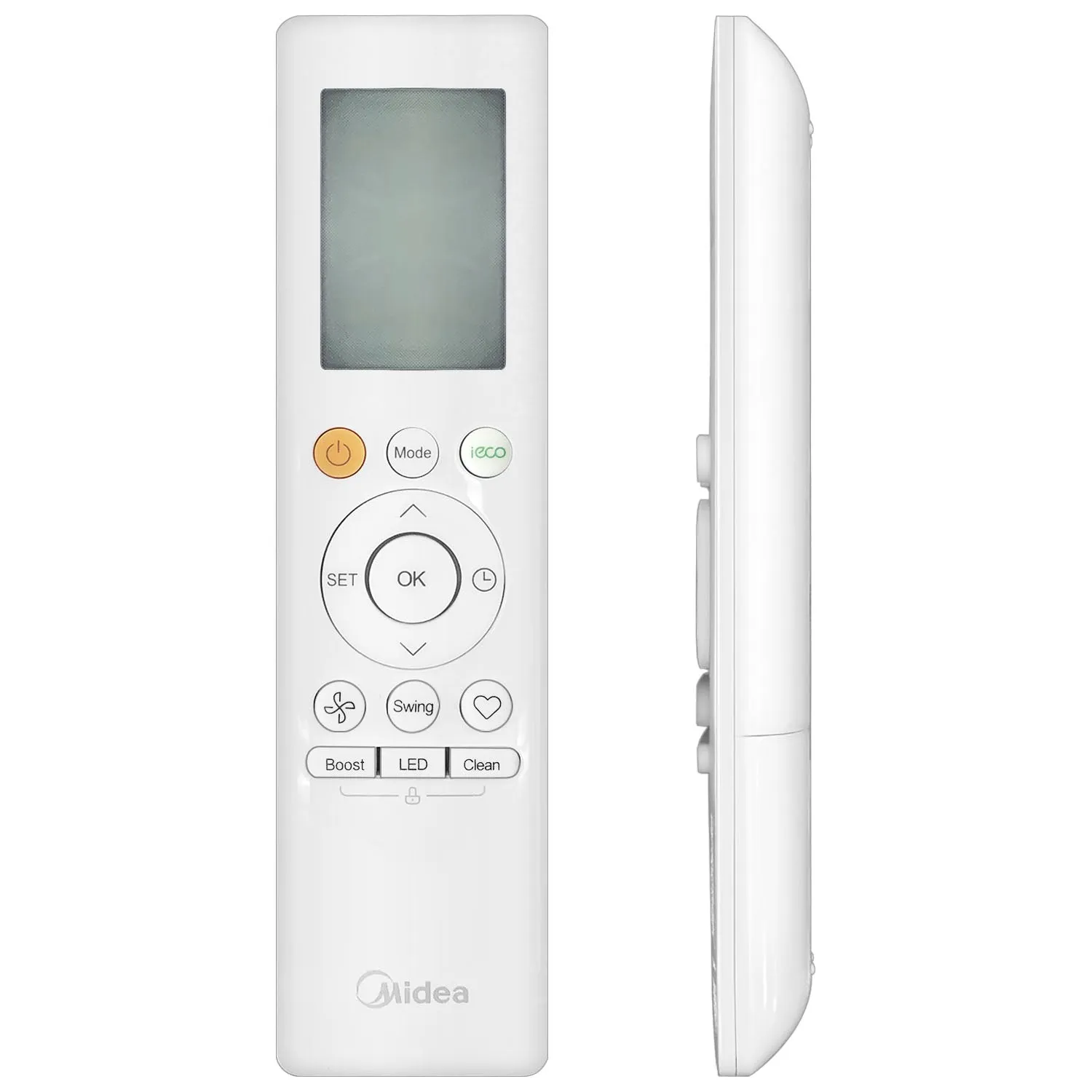

- Remote Control – x1
- AAA Battery – x2
- Wall Mount Remote Holder – x1
- User Manual – x1
48k BTU Outdoor Unit – x1 |
